Student project

Design Skills

Project Q is a BBQ grill table that deign for Glamping market to have for hi-end experience that allow Design Within Reach enter into a new market.


Design progress, Sketch, Ideation, brand design, Rendering , prototype, 3D Printing, CMF, 3D Modeling, Market Research

Software used

Solidworks, Keyshot

Duration

14 weeks

Student project


Design Within Reach was founded in 1998 with a mission: making authentic, modern furnishings accessible. Based in Stamford, Connecticut, DWR markets and sells furniture and accessories to both residential and trade customers online and through its retail studios in North America.

Ideation

Design Progress

Detail

Final Render


Brand Research

Design is own by HermanMiller, like it's brand it make hi-end modern style furniture design product to their hiend market


Market Research

Trend report (2)_03.png

Helvetica Light is an easy-to-read font, with tall and narrow letters, that works well on almost every site.

Why Camping


Easier Manufacturer

Both Furniture

GettyImages-1169557305-1920x1152_edited.

New Market

more costumer


Elegant Design

Now most camp Equip are feel raw

Camp Product can play with


BBQ Grill


Camp Table


Camp Chair

Why need to redesign

屏幕截图 2023-12-10 200630.png

Complex Equip


Raw Design

(已瘦身)leolin_pd4_FINAL PRESENTION_09.png

Grill with Table

The concept I come is to make the camping table with a grill BBQ together which make the experience of glamping not too complex also let it feel more elegant with it

(已瘦身)leolin_pd4_FINAL PRESENTION_06.png

B to B Product

As it is glamping, design with reach and autocamp work together to make the product move into autocamp site

test Prototype

I use the table and put some MDF onto it and try to make sure what size is proper for this table


I got the inspiration from these hiend  furniture, which I willing to make one side become simple modern table and have all the grilling part in other side


First version Test


Design Progress

(已瘦身)leolin_pd4_FINAL PRESENTION_31.png

I had the problem is that grilling need a side table to prepare and put food, but I found it is hard to make it with the surface of table and let it feel elegant


I got the inspiration of this camping grill and I decide to make one side of grill table become round and hide the side table under the main table

Final Design

(已瘦身)leolin_pd4_FINAL PRESENTION_42.png

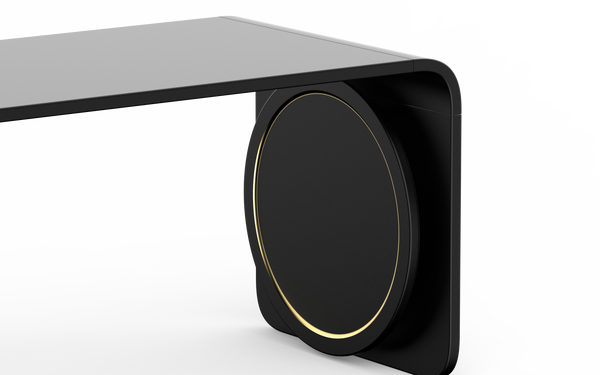

One side of the table is supported by a fire grill that allow user doing all the food one side and serving to other people

User can put the cap of the table under another side of the table which allow not to touching anywhere else


Side table can be open and rotate in the under of the table with allow use it when need and hide it when they don't need it


Table also came with a second cap with is for steam cooking when user need it


Design of the table is purpose to be highly disassemble and store into part to transfer into different camp site

For the colorways of product was make it more like to different scene of nature campsite

 Render Galley

Thank You
